How Diffractive Optics Are Being Used?

In recent years, diffractive optics has progressed into a good approach of beam shaping and splitting. They possess a huge advantage over the refractive lens as they are more light-weighted and condensed in nature and can be easily manipulated into optical systems. Not just that, they are also capable of various optical utilities in one element itself. Diffractive optical elements can be abbreviated as DOEs. They have made considerable advancements where a standard component in medical laser, material processing, aesthetic lasers, and structured light projection systems has been implemented. And, with rapid advancement, its use is only increasing across industries.

Improvements made recently in DOE design and production procedures have decreased unwanted demands and reduced zero demand. But at the same time, it is improvising consistency and accomplishing advanced diffractive competences.

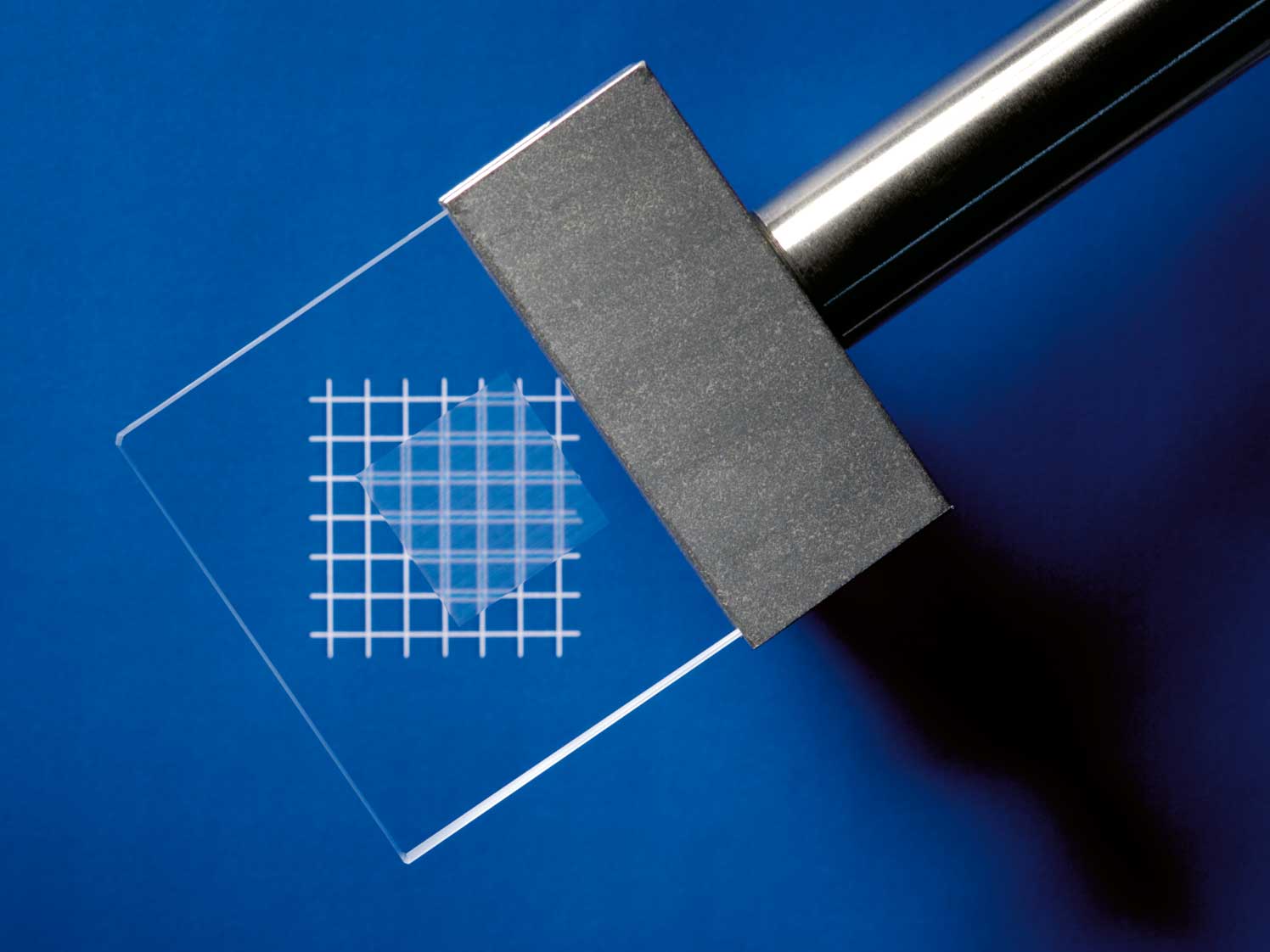

They are diffractive micro relief outlines that influence the stage of an inbound laser beam for the formation of an anticipated intensity profile. In all, they are categorized by diffraction efficacy ¬— the segment of power that is focussed into the wanted course against the overall entered power. The fraction of power that is not in the wanted outline goes to higher methods at greater angles.

This is possible with DOEs being a binary element with typical productivities of around 75%. Otherwise, it can be in multiple levels with the efficacies to an extent of 95%. Generally, the increased level utilized, greater is the level of efficacy. But the backside to this is the difficulties that may arise in the production process. The production of a high laser level is mainly grounded on photolithography and then dry plasma etching steps.

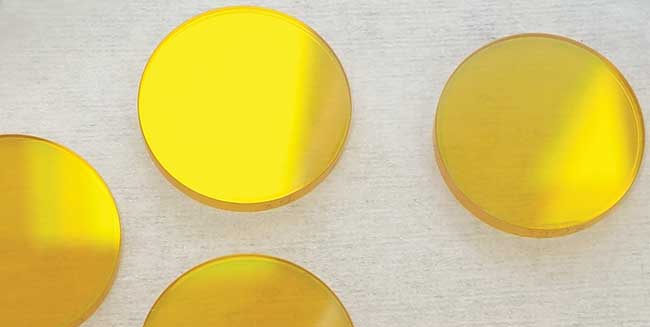

The standard handled substrates comprise of merged silica, zinc selenide, and sapphire. These all are well-suited for greater power laser systems.

Industrial tolerances such as engraving depth and feature size may prompt high zero-order and inferior uniformity. The problem with this is that it would end up degrading the overall operation of the DOE. Multi-level elements are more susceptible to errors. Hence, to prevent these errors, production tolerances must be stricter.

To fulfill the aim of good quality elements and to decrease accidental lithography, the cap of possible errors must be minimal and it should be as per design. This is with the consideration of the number of design stages and stipulations. DOEs can be broadly classified into two categories; beam shaping and beam splitting. According to the particular usage requirements, either one can be selected.
